Making the Resin and Tempered broken Glass Ice Candles

Rick Silas has to be give credit here - with a way to rework broken tempered glass
https://www.youtube.com/watch?v=DrTwq8u83e8

Materials:
EX70 resins - 1:1 ratio - I got at Curry's Art Supplies -   I will sub with my own resins but wanted to follow the instructions as closely as I could for the prototypes
Methyl Hydrate (alcohol) for thinning - you want it a bit thinner to run down into the glass
SmallBucket - I got the 1/2 bucket at home depot
Lots of broken tempered glass - this took one bit tote /2 shoe box totes to fill the 1/2 bucket
Mixing stick - clean - dollar store wooden spoon - dollar store brush - (I prefer the wooden spoon)
Container to mix in -
table cover - poly plastic is good the epoxy wont stick to polyethylene -just in case
5 x5 tile - all I could find at HOme depot was  a 4-1/4 x 4-1/4  white tile for this project


single tote                                                   double tote (not quite full )

So very anxious - I had broken my glass during the week and put into the tote ( so as of now I have basically 3 shoe box size totes filled with broken tempered glass

I put into the pail and filled to just below the rim so that I was not overflowing (I still have to put in resin and I didnt want a mess)

So bucket is filled and pressed down and I bounced it a couple times for it all to settle

I brought it inside - as its too cold to pour outside (epoxy likes heat to cure ) Put the tile on top (ceramic shiny side down ) and pushed down on it so it was seated well on top of the broken glass

Now - from the video I cant tell how much he used for each candle - so its a guessing game

I want to make more than I need in this case  - as I'd rather have too much than too little

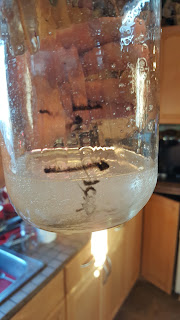

so I measured on a mason jar - 1 cup  of water and poured into the jar and marked it - then put another 1 cup in and marked it to show the 2 cup mark  - emptied the water and dried the jar

I poured the part A in first to 1cup mark - cleaned the spout and put the cap back on
I poured the part B in to the 2cup mark - cleaned the spout and put the cap back on
I poured about    1/4 cup - just a little less of the methy hydrate (this wil et me know how far it seeps down - if not far enough then I'll need maybe the full 1/4 cup next time

Mix - mix - mix

I tore a piece of cardboard from a box to use as spreader

Poured onto center of the tile and slowly pulled to all sides to seep down - poured more
till what I thought was enough - the guessing part

so now I can see what I have left - after the pour




will see how far it seeped - and gauge my next measure based on the results - so fingers crossed tomorrow I see something that looks like one of Rick's candle holders
and off to dollar store today for glass inserts for the candles

once its out I still have to seal the piece - and I may use some alcohol inks to color - will have to see

but what does not stick or covered in resin can be resued on the next candle - which means I should have enough for a 2nd candle ! tomorrow
